Hydraulic pipe screwing machine

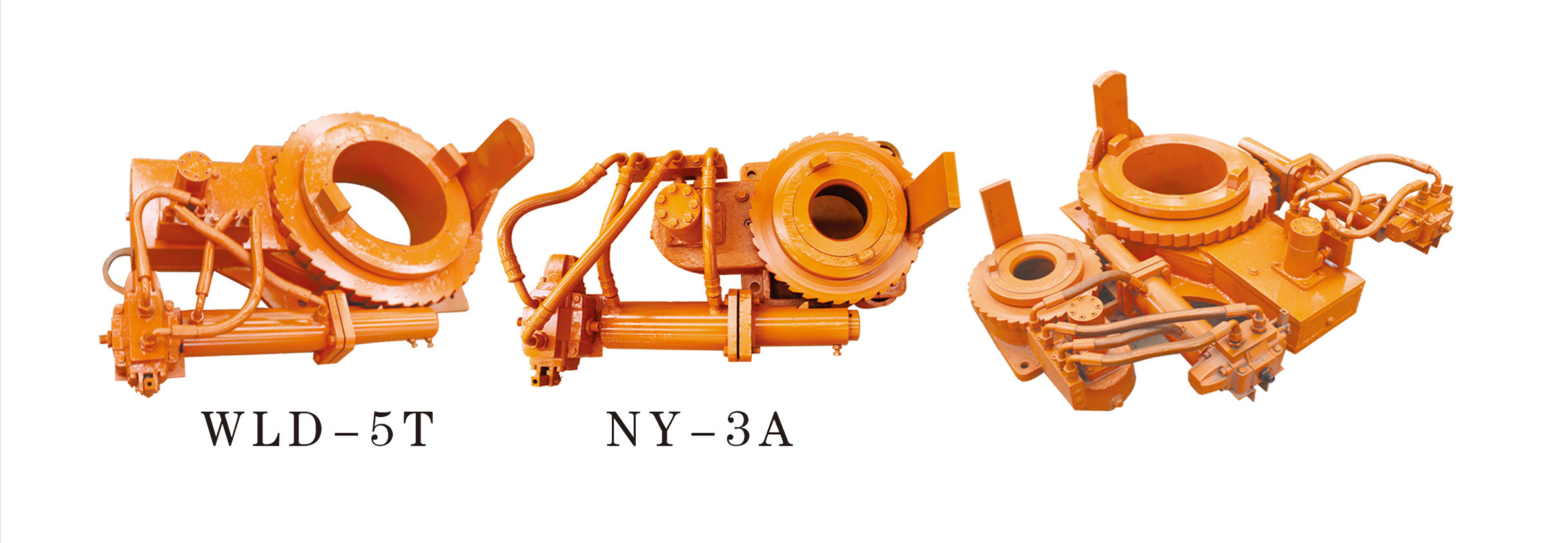

The NY-3A WLD-5T type hydraulic pipe twisting machine is mainly matched with the hydraulic vertical shaft drilling rig to replace manpower for unscrewing drill pipes and drilling tools, so as to mechanize and automate the process of unscrewing drill pipes, reduce the labor intensity of tripping operations, improve production efficiency, and improve labor intensity. The hydraulic pipe screwing machine is suitable for geological core drilling within 2500 meters deep, and the needs of drilling pipes in 42.50.60, 71, 73 and 89 in hydrological drilling.
Classification:
Product Introduction
parameter
| NY-3A | WLD-5T | Unit | |
| Maximum torque for twisting the tube(Oil pressure 120 kgf/Cm²) | 60 | 100 | kgf/c㎡ |
| Working torque for twisting pipes(Oil pressure 80 kilograms forceCm²) | 40 | 80 | kgf/c㎡ |
| Working speed of pipe twisting machine | 85 | 85 | r/min |
| Maximum thrust of oil cylinder piston | 6042 | 8040 | kgf |
| Working thrust of oil cylinder piston | 3625 | 4039 | kgf |
Cylinder piston stroke |
130 | 150 | mm |
| Inner diameter of the catheter | 175 | 330 | mm |
| Weight of pipe twisting machine | 180 | 360 | kg |

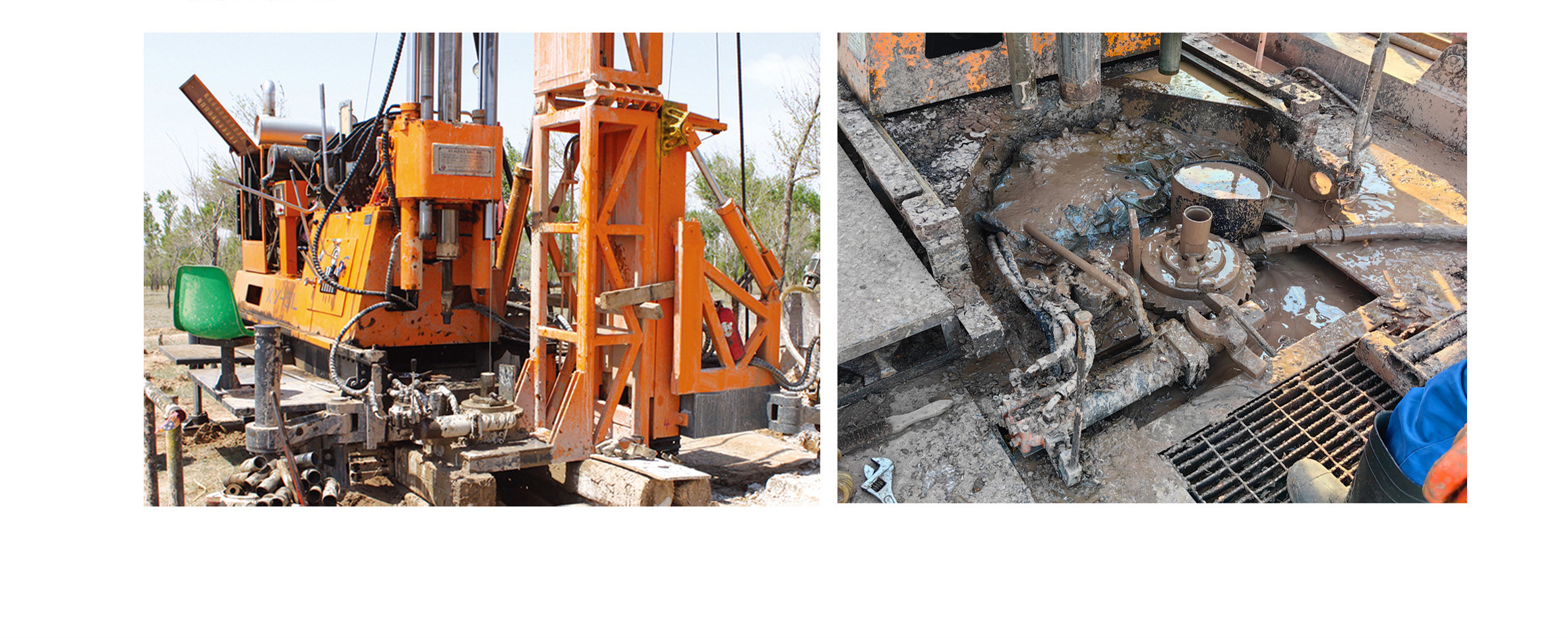

On site use
